Adapter DC Output Connectors
Page 5 of 6


OC-21

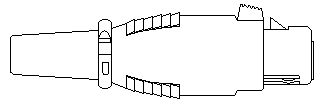

MIC CONNECTOR : 3-PIN; 4-PIN


OC-22
MINI DIN PLUG : 3-PIN [FEMALE]

OC-23A
TERMINAL P187+PVC TUBE

OC-23B
TERMINAL P187+UL HEAT SHRINKABLE TUBE

OC-20
4-PIN MEDIUM PLUG BODY (YELLOW)

OC-24
1~15-PIN PLUG -PITCH : 3.68 (TKP H7625)

OC-25A (Overmold)
6~8-PIN PLUG -PITCH : 4.20

MOLEX P/N: 39-01-2020; TKP H6657R1

OC-25B
6~8-PIN PLUG -PITCH : 4.20
MOLEX P/N: 39-01-2020; TKP H6657R1


Please note that not all output connectors are available for every power supply from tooling or sample's point of view.
Additional cost for tooling and/or over molding may be required for some models. In this instance, Top will offer samples with hand assembled connectors, not from tooling, for you. Please speak to a Top Microsystems sales representative for additional information.
